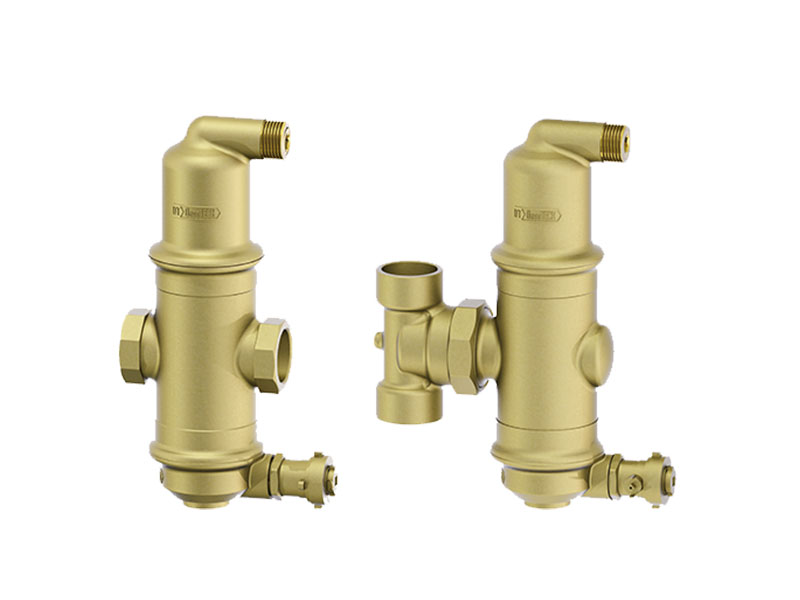

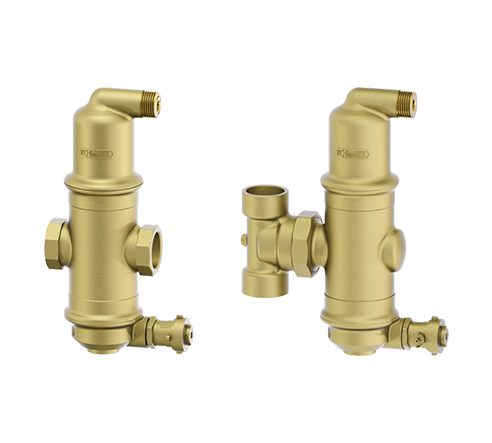

The most convenient spiral micro-bubbles deaeration & decontamination valve

The minimum diameter of removed air bubbles is 10μm and the minimum diameter of removed contamination particles is 5μm.
The gas content in the circulating water system can be removed more than 95% after three hours operation with a flow velocity of 1m/s.(Laboratory test data)
Exhausting gas and separation of dirt at the same time, and then discharge dirt after accumulation.
The dirt content in the circulating water system can be removed more than 98% after three hours operation with a flow velocity of 1m/s.(Laboratory test data)
Maximum working temperature: 110℃, maximum allowable working pressure: 16bar; the maximum customizable design conditions are 180℃ or 25bar.
For water and water/glycol mixtures (max. 50% glycol).
Horizontal installation or vertical installation. Threaded connection and exclusion seal. The product meets CE standard.
General construction, built-in copper filter element with helical structure, and the body is made of brass.
