System auxiliary

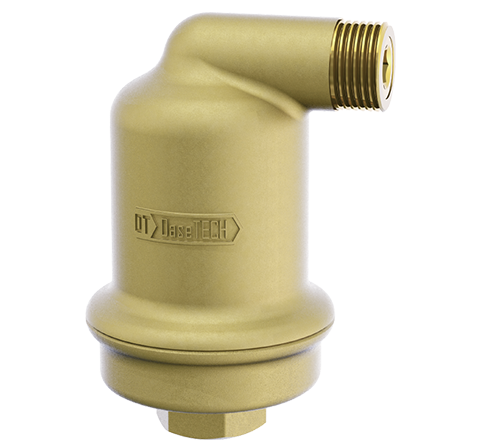

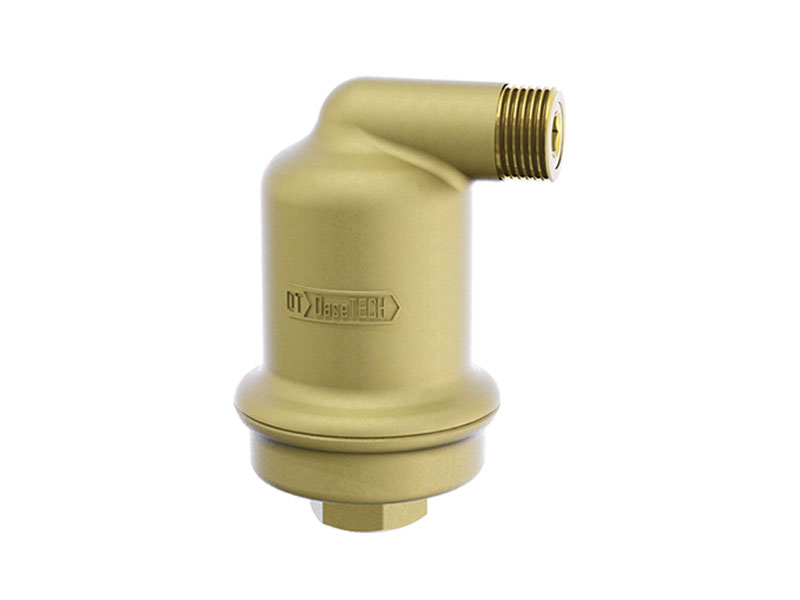

Automatic exhaust valve

OaseTECH Automatic exhaust valves release gas continuously and steadily from the system.
The automatic exhaust valve is installed vertically in the system, such as the heat generation device, the high level of the system or the air accumulation position. Its specially designed large capacity air chamber allows the internal float to move up and down freely with a longer travel, even if there is a small amount of dirt can run stably.

Characteristics

  • Exhaust when the new system is filled with water or the system is emptied and refilled with water;
    High point or collection point of conventional exhaust, automatic pressure recharge system drainage;
    Brass case, vertically mounted, threaded connection;
    Maximum temperature 110 or 180℃, maximum pressure 1.6MPa.
